Connect ONE® Access Expander for:
ELK M1, Bosch B/G, DMP XR, Vista Turbo Control Panels

ROI your customers want + RMR you deserve

Welcome to the Next Generation of Integrated Platform...

All these integrations from ONE control panel!


Also... Interface the Access Expander with your existing Security Control Panel.

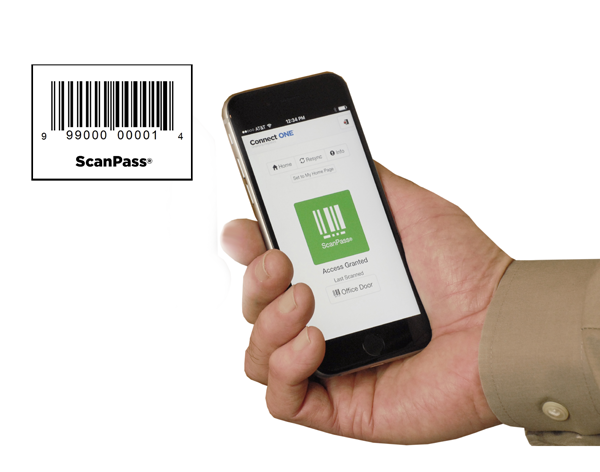

Compatible with ScanPass® Mobile Credential for 200+ access doors on one control panel.

Compatible with Assa Abloy Aperio Wireless Lock Technology for wireless access doors integrated into the same control panel.

Compatible with Cansec Systems MAP Access Controllers for additional access doors integrated into the same control panel.

  • Complete integration with Bosch, DMP, Elk, and Honeywell Vista panels allows for the wireless locks to map directly to the intrusion armed status for denying access when armed, preventing schedule unlock when armed, first-in unlock when disarmed, and disarm on access. It also provides for a mapped hardwire relay output which allows for an auxiliary control upon access, a hardwire lock operation for the aperio reader only device, and a relay output to control an external door opener. It also allows for direct control of the aperio locks from the intrusion panel via hardwire reader and/or keypad control to turn on/off the associated output which controls the aperio lock too.
  • User permissions are applied exactly the same as how they are specified for hardwire readers connected to the panel. Therefore the system can have wired reader/locks and wireless reader/locks mixed without any additional complexity.

With the Access Expander you get all of the great Connect ONE® features, plus:

Plug-in & Go Intrusion/Access

Instant Always-On Communication. No Network/Router Configuration Required, and No Port Forwarding. No Configuration necessary, Ready-To-Go right out of the box.

ELK M1: Up to 8 partitioned security areas, 208 zones, and 205 outputs.

Bosch B/G: Up to 32 partitioned security areas, 599 zones, and 599 outputs.

DMP XR: Up to 32 partitioned security areas, 574 zones, and 506 outputs.

Vista Turbo: Up to 8 partitioned security areas, 250 zones, and 96 outputs.

Access Doors

ELK M1: Up to 16 wired access doors and keypads, expandable by stacking additional control panels. Compatible with ScanPass and Aperio wireless locks for 200+ access doors on one control panel.

Bosch B/G: Up to 32 wired access doors and keypads, expandable by stacking additional control panels. Compatible with ScanPass and Aperio wireless locks for 200+ access doors on one control panel.

DMP XR: Up to 96 wired access doors of which 16 of those may also be keypads, expandable by stacking additional control panels. Compatible with ScanPass and Aperio wireless locks for 200+ access doors on one control panel. NOTE: On systems over 32 doors it is important to remember that DMP profile permissions are derived from 32 individual areas rather than each individual door.

Vista Turbo: Compatible with ScanPass and Aperio wireless locks for 96 access doors on one control panel.

Aperio Wireless Locks

The aperio locks utilize an encrypted wireless connection to an aperio IP hub. Each hub can communicate to a maximum of 64 locks. The IP hub is connected to the access expander via an encrypted network connection. The access expander can support up to 128 hubs however the capacity of wireless locks is dependent on the intrusion control panel. For example, the Bosch B9512G can support up to 231 locks, the DMP XR550 can support up to 465 locks, the Elk M1 can support up to 206 locks, and the Honeywell Vista can support up to 96 locks.

Users

ELK M1: Up to 90,000 user codes consisting of keypad codes, ScanPass Mobile Credentials, or 26-bit wiegand cards & keyfobs. Up to 1,000 profiles to define permissions including expiration dates and counters.

Bosch B/G: Up to 90,000 user codes consisting of ScanPass Mobile Credentials. Up to 1,000 profiles to define ScanPass permissions including expiration dates and counters.

DMP XR: Up to 90,000 user codes consisting of cards/keyfobs or ScanPass Mobile Credentials. Up to 99 profiles to define permissions including expiration dates.

Vista Turbo: Up to 90,000 user codes consisting of ScanPass Mobile Credentials. Up to 1,000 profiles to define ScanPass permissions including expiration dates and counters.

Schedules

ELK M1: Up to 250 time schedules to define access privileges and automatic door and output triggers. Up to 50 holidays which may span one day or multiple days using a date range.

Bosch B/G: Up to 250 time schedules to define ScanPass access privileges and automatic door and output triggers. Up to 50 holidays which may span one day or multiple days using a date range.

DMP XR: Up to 99 time schedules to define access privileges and automatic door and output triggers. Up to 40 holidays which may span one day.

Vista Turbo: Up to 250 time schedules to define ScanPass access privileges and automatic door and output triggers. Up to 50 holidays which may span one day or multiple days using a date range.

Elevator Control

ELK M1: Complete flexibility providing access permissions for multiple elevators with individual floor control and scheduling.

Bosch B/G: Complete flexibility providing ScanPass access permissions for multiple elevators with individual floor control and scheduling.

DMP XR: Elevator control possible via output grouping.

Vista Turbo: Complete flexibility providing ScanPass access permissions for multiple elevators with individual floor control and scheduling.

Lockdown

Lockdown one building or multiple buildings in a single action and send custom notifications to concerned parties.

Multi-Factor Authentication

ELK M1 / DMP XR: Require two or more credentials for access authentication, can be from one user or mutiple users, such as card plus pin or two cards from different indivudals.

More

Virtual Anti-Passback, Configurable Door Prop and Door Forced Alerts, plus more.

Access Expander Models


ACCEXP-M1 Access Expander for ELK M1 Control Panels
ACCEXP-M1 Operation Manual
Compatibility: M1 EZ8, M1 Gold


ACCEXP-BG Access Expander for Bosch B/G Control Panels
ACCEXP-BG Operation Manual
Compatibility: B3512, B4512, B5512, B6512, B8512G, B9512G


ACCEXP-XR Access Expander for DMP XR Control Panels
ACCEXP-XR Operation Manual
Compatibility: XR150, XR350, XR550


ACCEXP-VT Access Expander for Honeywell Vista Turbo Control Panels
ACCEXP-VT Operation Manual
Compatibility: 128BPT, 250BPT

Access Expander Comparison Chart
Aperio is a trademark of Assa Abloy, Inc.
